| JC-100 type gas alarm controller |
| Published：2013-8-27 Views：5658 |
 |
|
Product introduction:
JC100 type gas alarm controller is composed of alarm monitor and gas detectors, can be mixed and matched with various gas detector, installation easy, 8 Road, 16 Road, 32 Road, or physical measurement, display and public alarm control.
The system adopts 32 bit embedded microprocessor as control unit, high performance catalytic gas sensors or high-precision electrochemical sensor as the detecting probe, high sensitivity, fast response speed. When the ambient air in the detection of gas concentration reaches or exceeds the preset alarm value, the controller issued immediately alarm, to remind the timely implementation of security measures, and controls the drive exhaust and other peripheral equipment action, to prevent an explosion, fire and poisoning accidents, so as to guarantee the life, property safety.
Can be used in oil exploration, oil and gas transportation, oil refining, metallurgy, power, chemical, oil, liquefied gas station, mine, tunnel, tunnels, underground pipelines need to fire, explosion, poisoning prevention places gas safety detection alarm.
Product features:
◆ high performance gas sensor
◆ 128*64 dot matrix large screen liquid crystal display
◆ Chinese interface
The mixture of gases installation
◆ remote display monitoring gas concentration
◆ high sensitivity, quick response
◆ automatic temperature drift, drift compensation
The upper and lower limit alarm value of each channel independent set
The eight 4-20mA signal output
◆ RS485, RS232 communication interface data can be uploaded to the computer
Technical indicators:
Detection of combustible gas and toxic gas: gas
Alarm setting: a concentration alarm program set
Two levels of concentration alarm program set
Alarm: alarm
The alarm volume: > 120 dB

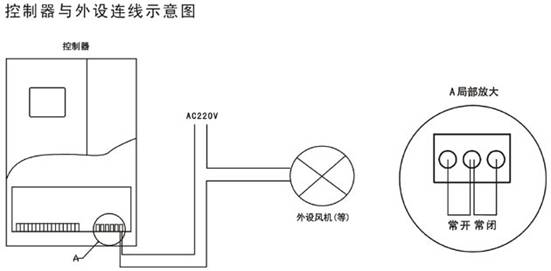

Alarm output: passive contact, the capacity of AC220v 5A
Environment temperature: -10 ℃ ~ 50 ℃
Humidity: < 90% no condensation
Protection grade: IP44
Power source: AC220V, 50HZ <10W
Transmission distance: 1000m 1.5mm2 RVVP
Dimensions and weight: 25cmX38cmX10cm 3.5K
|
产品名称
|
被测气体
|
测量范围
|
可选量程
|
分辨率
|
响应时间
|
|
一氧化碳检测仪/报警器
|
CO
|
0-1000PPm
|
0-500/2000/5000PPm
|
1PPm
|
≤20 秒
|
|
氧气检测仪/报警器
|
O2
|
0-25%VOL
|
30%VOL
|
0.1%vol
|
≤20 秒
|
|
臭氧检测仪/报警器
|
O3
|
0-10PPm
|
0-100PPm
|
0.01PPm
|
≤20 秒
|
|
硫化氢检测仪/报警器
|
H2S
|
0-100PPm
|
0-50、200、1000PPm
|
1PPm
|
≤30 秒
|
|
氢气检测仪/报警器
|
H2
|
0-1000PPm
|
0-5000PPm
|
1PPm
|
≤30 秒
|
|
氯气检测仪/报警器
|
CL2
|
0-20PPm
|
0-10、100PPm
|
0.1PPm
|
≤30 秒
|
|
氨气检测仪/报警器
|
NH3
|
0-100PPm
|
0-50、500、1000PPm
|
1PPm
|
≤30 秒
|
|
二氧化硫检测仪/报警器
|
SO2
|
0-20PPm
|
0-50、1000PPm
|
0.1PPm
|
≤30 秒
|
|
一氧化氮检测仪/报警器
|
NO
|
0-250PPm
|
0-500PPm
|
0.1PPm
|
≤30 秒
|
|
二氧化氮检测仪/报警器
|
NO2
|
0-20PPm
|
0-50、100PPm
|
0.1PPm
|
≤30 秒
|
|
甲醛检测仪/报警器
|
CH2O
|
0-50PPm
|
0-5、10PPm
|
0.01PPm
|
≤30 秒
|
|
氯化氢检测仪/报警器
|
HCL
|
0-20PPm
|
0-20、100PPm
|
0.5PPm
|
≤30 秒
|
|
可燃气体检测仪/报警器
|
EX
|
0-100%LEL
|
0-100%LEL
|
1%
|
≤30 秒
|
|
|
